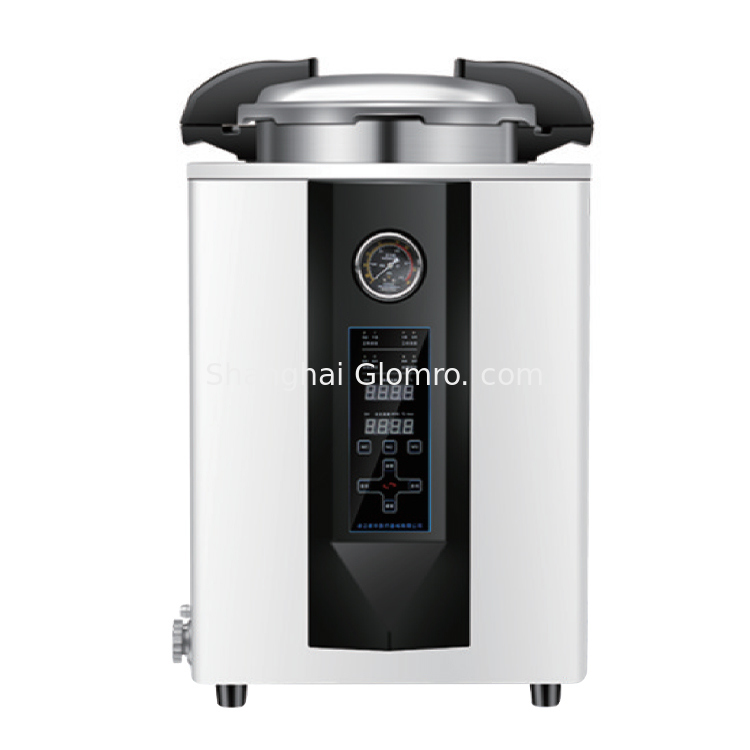

Industrial Steam Sterilizer Vertical Non-Medical Lab Autoclave

Autoclave Steam Sterilizer

High Temperature Steam Autoclave Vertical Type for Lab and Hospital
Medical Laboratory Portable Autoclave Steam Sterilizer High Pressure

Intelligent control system
· Utilizes microcomputer control, equipped with digital LCD display, with intuitive operation
· Includes 3 fixed working programs (M1 solid drying / M2 liquid insulation / M3 Pasteur insulation) and 1 customizable program, meeting diverse sterilization requirements

High-quality materials and structure
·The equipment shell is made of cold-rolled steel plate, and its surface is treated with electrostatic powder coating, which is both attractive and durable
·The inner container and the cavity are made of 304 stainless steel, featuring excellent corrosion resistance and cleanliness
·High-quality insulation materials are used to effectively reduce heat loss, improving energy efficiency and performance

Safety Assurance System
· Equipped with axial dual-scale type II reading pressure gauges for precise monitoring
· Features safety valves and pressure control switches to provide dual overpressure safety protection
· When overpressure (≥0.165MPa) or overtemperature occurs, the system will automatically cut off heating and issue an alarm
· Has a low water level detection function; when the water level is insufficient, it will automatically cut off the heating power supply and issue an alarm

Core Function Configuration
· Utilizes self-expanding sealing rings to ensure high airtightness of the chamber during operation
· Equipped with dual-layer electric heating tubes for both water and air use, providing efficient heating and strong adaptability
· Features a bottom-draining and exhaust structure, capable of automatically discharging cold air; automatically exhausts after sterilization
· Enhances safety and convenience
· Includes a cycle counter to automatically record the total number of device uses, facilitating management and maintenance
· Equipped with a self-regenerating electrochemical inhibitor, requiring no additional regeneration solution, with simple operation and maintenance
· Features a liquid cut-off self-protection function and can be perfectly applied to gradient washing mode, expanding the possibility of method development

Characteristics

• Overpressure self-discharge 0.145-0.165Mpa
• Maximum operating temperature 126°C-128°C
• Double scale second reading pressure gauge
• Self-expanding seal
• With rotation timing 60 minutes, manual adjustment
• Automatically cut off the heating power supply and alarm when the water level is low
• All stainless steel material
• Electric heating system
• Easy to operate, safe and reliable


Technical Specifications

Structure Presentation

APPLICATION

FAQ

1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South
America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central
America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler

4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The
service is good

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
