Pipeline Air Leakage Testing Machine For Air Sealing Performance Test

Основная информация
Place of Origin: China
Фирменное наименование: BAXIT
Model Number: BXT-DALT6900/BXT-DALT6910
Minimum Order Quantity: 1
Цена: US$6,320-9,656
Packaging Details: Carton box/Wooden box
Delivery Time: 5-8Working day
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 10000pcs
Подробная информация
Model: BXT-DALT6910 Flow Range: Small nozzle:4-70m³/h Large nozzle:70-1200m³/h
Precision: The reading is ±2.5% ± 0.1 m³/h Resolution: 0.01m³/h
Static pressure Range: ±4500Pa Temperature Range: 0-60℃
Выделить:

Pipeline Air leakage testing machine

,

Air Sealing Performance Test Pipeline


Характер продукции

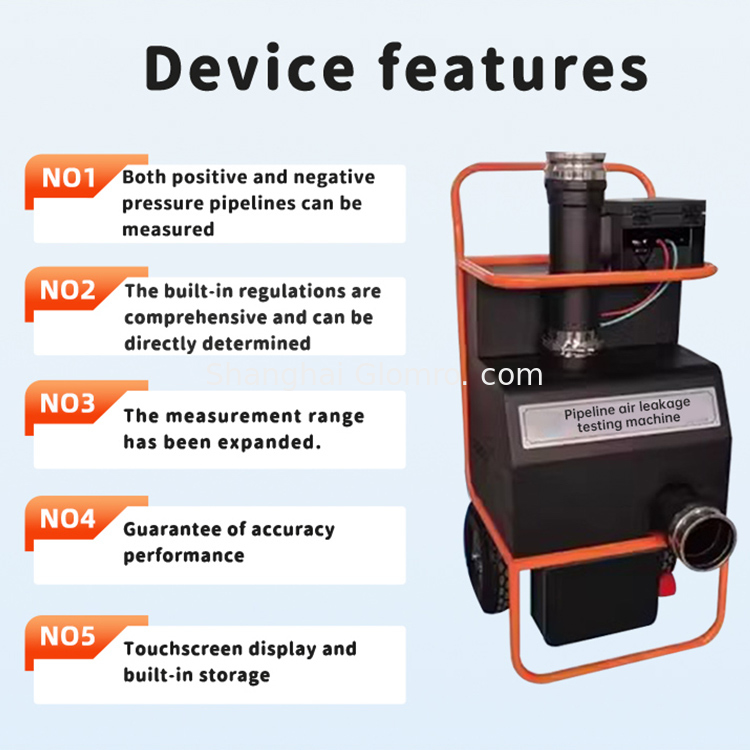

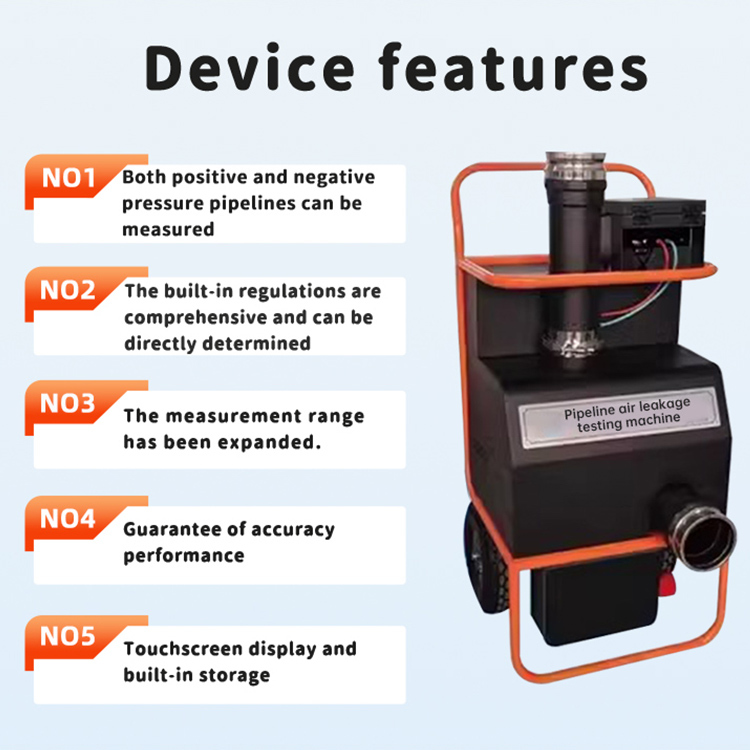

Pipe leakage air volume tester

           The duct leakage testing machine is used for testing the leakage volume of air conditioning ducts, fire protection ducts and enclosed spaces. It can be used to test both segmented ducts and the total duct after the installation of the entire system, ensuring the working efficiency of the system and avoiding energy waste.

Pipeline Air Leakage Testing Machine For Air Sealing Performance Test 0

Pipeline Air Leakage Testing Machine For Air Sealing Performance Test 1

Pipeline Air Leakage Testing Machine For Air Sealing Performance Test 2




Technical Specifications

Model
BXT-DALT6900 BXT-DALT6910
Flow Range Matrix:36-640m³/h Nozzle:4-36m³/h Small nozzle:4-70m³/h
 Large nozzle:70-1200m³/h
Precision The reading is ±2.5% ± 0.1 m³/h
Resolution 0.01m³/h 0.01m³/h
Static pressure Range ±2500Pa ±4500Pa
Precision The reading is ±1Pa, with an accuracy of 1%.
Resolution 0.1Pa 0.1Pa
Temperature Range 0-60℃ 0-60℃
Precision ±0.5℃ ±0.5℃
Resolution 0.1℃ 0.1℃
Atmospheric pressure Range 70-130kPa 70-130kPa
Precision The reading is ±2%
Resolution 0.1kPa 0.1kPa
Power supply 100 - 120V single phase 16A / 220 - 240V single-phase 10A 220V ± 10%, single phase, 50/60Hz, 16A
Weight 72KG 63KG
Size 540*500*1200mm 480*610*1045mm
Storage 1000 sets 1000 sets

Pipeline Air Leakage Testing Machine For Air Sealing Performance Test 3

Pipeline Air Leakage Testing Machine For Air Sealing Performance Test 4

Pipeline Air Leakage Testing Machine For Air Sealing Performance Test 5

Pipeline Air Leakage Testing Machine For Air Sealing Performance Test 6

 Packing & Delivery

Pipeline Air Leakage Testing Machine For Air Sealing Performance Test 7

FAQ

1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler

4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The service is good

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
